Mahogany and Brass Traditional Toilet Cistern Flush Handle UK

QUALITY TRADITIONAL MAHOGANY AND TARNISHED GOLDEN BRASS FINISH CISTERN LEVER HANDLE.

Approximate Length Of Lever Handle (Exterior) - 130mm

Ideal for cottage style or traditional look bathroom, En suite or cloakroom.

Quality Manufacture. Tarnished Brass and Mahogany Finish Flush Handle.

Olde Worldy Toilet Flusher. Flush Handle Lever. Stylish Victorian Edwardian Georgian Piece.

ASSEMBLY & FITTING INSTRUCTIONS

GALAXY BATHROOMS

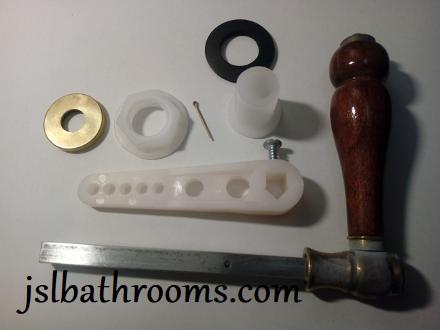

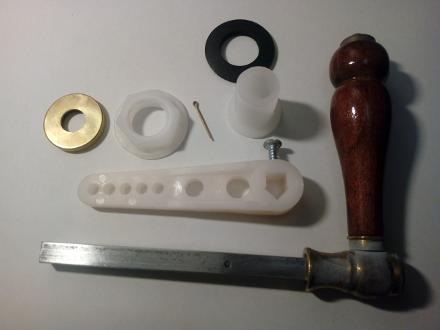

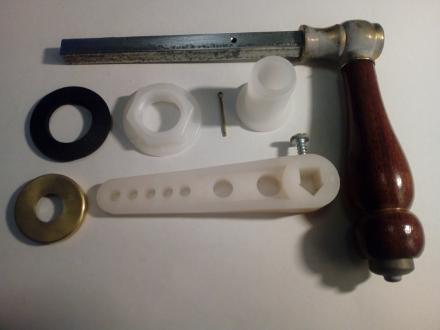

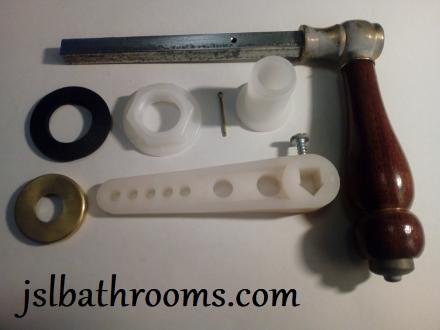

Mahogany And Tarnished Golden Brass Cistern Lever - Assembly Instructions.

1. Unscrew the mahogany handle from the golden brass shroud.

2. Insert the bar (the end with the hole) into the shroud. Making sure that the holes are aligned.

3. Screw in the mahogany handle so that the thread of the handle secures the bar in place.

4. Place the tarnished golden brass washer down the bar, followed by the plastic threaded insert, with the threaded end the furthest from the handle.

5. Place the lever through the hole in the cistern, and secure it in place by threading on, and hand tightening the nut, from the inside.

6. Secure this with the small brass pin, by pushing it through the small hole in the bar, and opening up the ends of the pin. The lever should not now be able to be removed from the cistern.

7. Attach the plastic arm on the end of the lever bar, and secure with a screw (if provided). This plastic arm should align with the link to the syphon. In most cases the plastic arm should be horizontal, as should the lever when attaching the arm.

8. Attach the C-Link connection from you Syphon to the appropriate hole in the plastic arm to ensure that the rod of the flushing syphon rises straight, when the handle is flushed.
